Text-to-brain generation comparison

Compare MLP and CNN generation in their declared brain spaces on paired test examples. The published test split contains 3,066 PubMed, 79 Nilearn, and 202 NeuroVault examples. Because full PubMed generation evaluation is slow on a typical Mac, this notebook evaluates the first 200 PubMed examples and the complete Nilearn and NeuroVault splits. Set DOMAIN_LIMITS["pubmed"] = None to run the complete PubMed test split. CNN mixed-baseline heads are selected unless fine-tuned variants are requested explicitly.

import matplotlib.pyplot as plt
import pandas as pd
import torch
from neurovlm import AtlasFreeCNNDataProvider, load_pipeline
from neurovlm.data.atlas_free_text import (
    AtlasFreeContrastiveCollator,
    AtlasFreeTextEmbeddingLookup,
    primary_positive_text,
)
from neurovlm.evaluation import (
    default_comparison_matrix, evaluate_text_to_brain_comparison,
)

DOMAINS = ("pubmed", "nilearn", "neurovault")
DOMAIN_LIMITS = {
    "pubmed": 200,       # runtime-conscious default; use None for all 3,066
    "nilearn": None,     # complete test split: 79
    "neurovault": None,  # complete test split: 202
}
INCLUDE_FINETUNED = False
DEVICE = "cuda" if torch.cuda.is_available() else "cpu"
EVALUATION_SCOPE = "PubMed first 200; Nilearn and NeuroVault complete test splits"

results = []
for domain in DOMAINS:
    selections = default_comparison_matrix(
        "text_to_brain", domains=(domain,), include_finetuned=INCLUDE_FINETUNED
    )
    results.append(evaluate_text_to_brain_comparison(
        selections=selections,
        provider=AtlasFreeCNNDataProvider(domain=domain, limit=DOMAIN_LIMITS[domain]),
        device=DEVICE,
    ))
summary = pd.DataFrame(row for result in results for row in result.summary)
by_source = pd.DataFrame(row for result in results for row in result.by_source)
by_sample = pd.DataFrame(row for result in results for row in result.by_sample)
manifest = pd.DataFrame(row for result in results for row in result.manifest)
summary.sort_values(["evaluation_domain", "family", "variant"])

There are adapters available but none are activated for the forward pass.
There are adapters available but none are activated for the forward pass.
There are adapters available but none are activated for the forward pass.

	model_id	family	task	domain	variant	evaluation_domain	status	comparison_protocol	comparison_space	text_preprocessing	...	top10_overlap	top10_target_recall	top1_dice	top1_intersection_voxels	top1_overlap	top1_target_recall	top5_dice	top5_intersection_voxels	top5_overlap	top5_target_recall
5	cnn_text_to_brain_mixed_baseline_neurovault_ev...	cnn	text_to_brain	neurovault	mixed_baseline	neurovault	resolved	paired_atlas_free	native_atlas_free_volume	empty_string_centered_l2_unit_normalized	...	0.329312	0.329312	0.131349	80.910891	0.131349	0.131349	0.245337	755.148515	0.245337	0.245337
4	mlp_text_to_brain_eval_neurovault	mlp	text_to_brain	None	mse	neurovault	resolved	paired_atlas_free	mlp_masker_flatmap	specter2_adhoc_query_orthogonalized_then_l2	...	0.172033	0.172033	0.033753	9.653465	0.033753	0.033753	0.091425	130.554455	0.091425	0.091425
3	cnn_text_to_brain_mixed_baseline_nilearn_eval_...	cnn	text_to_brain	nilearn	mixed_baseline	nilearn	resolved	paired_atlas_free	native_atlas_free_volume	empty_string_centered_l2_unit_normalized	...	0.051943	0.051943	0.008240	5.075949	0.008240	0.008240	0.018161	55.898734	0.018161	0.018161
2	mlp_text_to_brain_eval_nilearn	mlp	text_to_brain	None	mse	nilearn	resolved	paired_atlas_free	mlp_masker_flatmap	specter2_adhoc_query_orthogonalized_then_l2	...	0.172467	0.172467	0.035894	10.265823	0.035894	0.035894	0.080842	115.443038	0.080842	0.080842
1	cnn_text_to_brain_mixed_baseline_pubmed_eval_p...	cnn	text_to_brain	pubmed	mixed_baseline	pubmed	resolved	paired_atlas_free	native_atlas_free_volume	empty_string_centered_l2_unit_normalized	...	0.303956	0.303956	0.114692	70.650000	0.114692	0.114692	0.240359	739.825000	0.240359	0.240359
0	mlp_text_to_brain_eval_pubmed	mlp	text_to_brain	None	mse	pubmed	resolved	paired_atlas_free	mlp_masker_flatmap	specter2_adhoc_query_orthogonalized_then_l2	...	0.188186	0.188186	0.023339	6.675000	0.023339	0.023339	0.091590	130.790000	0.091590	0.091590

6 rows × 35 columns

summary contains spatial reconstruction metrics; by_source exposes the same metrics per corpus. This is a paired atlas-free comparison, but MLP and CNN outputs remain in different declared brain spaces. Compare trends and within-family domain changes; do not interpret their raw MSE values as voxel-identical measurements.

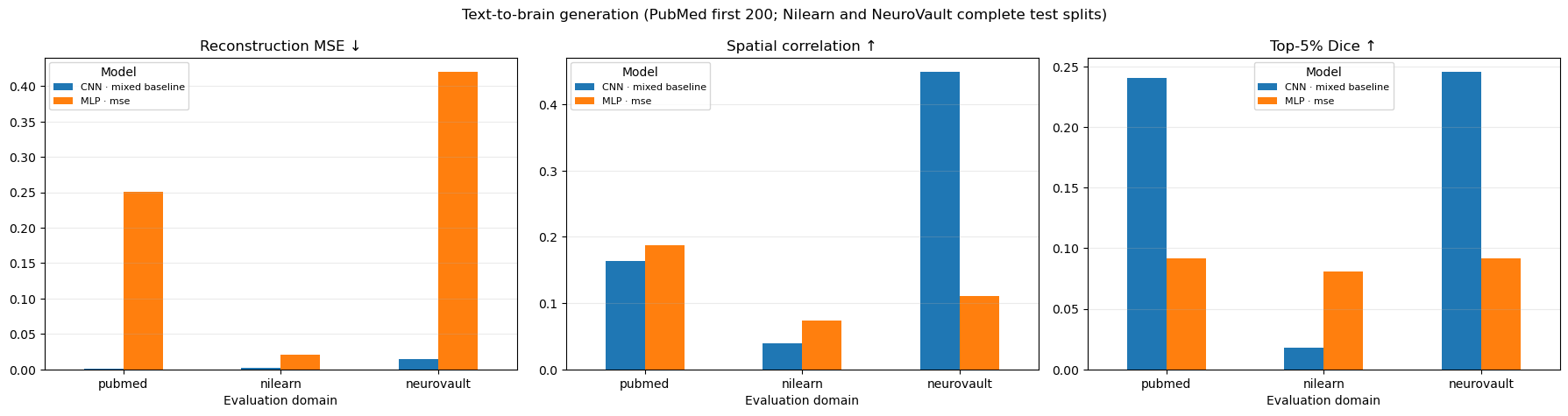

Aggregate metrics

Lower is better for reconstruction MSE; higher is better for spatial correlation and top-5% Dice overlap.

resolved = summary[(summary["status"] == "resolved") & (summary["n"] > 0)].copy()
if resolved.empty:
    raise RuntimeError("No models resolved. Inspect `manifest` for checkpoint errors.")
resolved["model"] = resolved.apply(
    lambda row: f'{row["family"].upper()} · {str(row["variant"]).replace("_", " ")}',
    axis=1,
)

metrics = (
    ("reconstruction_mse", "Reconstruction MSE ↓"),
    ("spatial_corr", "Spatial correlation ↑"),
    ("top5_dice", "Top-5% Dice ↑"),
)
fig, axes = plt.subplots(1, len(metrics), figsize=(18, 4.8))
for ax, (metric, title) in zip(axes, metrics):
    table = resolved.pivot(
        index="evaluation_domain", columns="model", values=metric
    ).reindex(DOMAINS)
    table.plot.bar(ax=ax, rot=0)
    ax.set_title(title)
    ax.set_xlabel("Evaluation domain")
    ax.grid(axis="y", alpha=0.25)
    ax.legend(title="Model", fontsize=8)
fig.suptitle(f"Text-to-brain generation ({EVALUATION_SCOPE})")
fig.tight_layout()
plt.show()

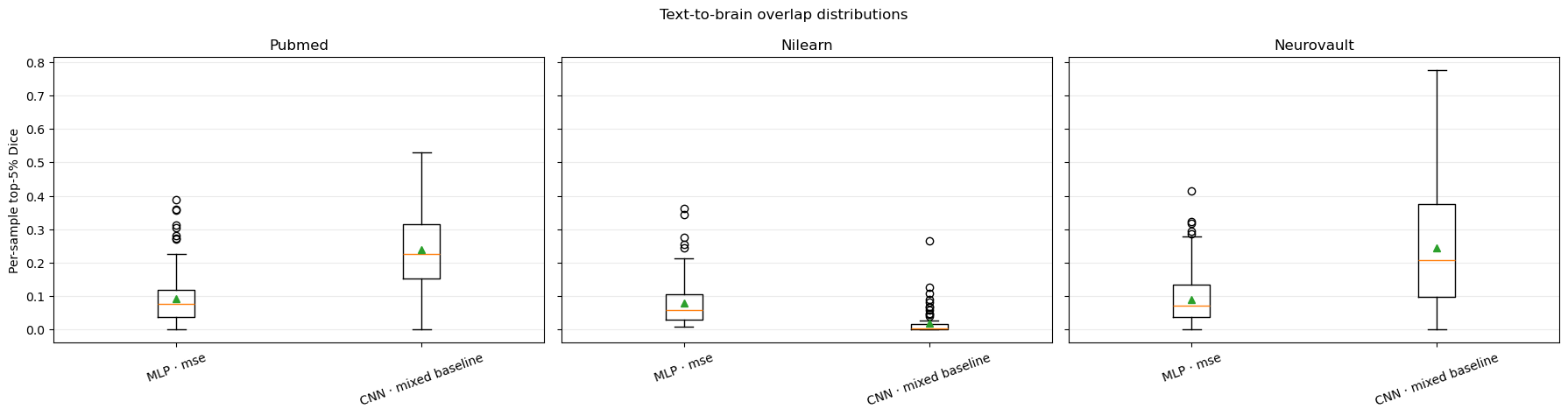

Per-sample overlap distributions

The distributions expose variation hidden by the aggregate means.

sample_rows = by_sample[by_sample["status"] == "resolved"].copy()
sample_rows["model"] = sample_rows.apply(
    lambda row: f'{row["family"].upper()} · {str(row["variant"]).replace("_", " ")}',
    axis=1,
)
models = list(dict.fromkeys(sample_rows["model"]))
fig, axes = plt.subplots(1, len(DOMAINS), figsize=(18, 4.8), sharey=True)
for ax, domain in zip(axes, DOMAINS):
    domain_rows = sample_rows[sample_rows["evaluation_domain"] == domain]
    values = [domain_rows.loc[domain_rows["model"] == model, "top5_dice"] for model in models]
    ax.boxplot(values, tick_labels=models, showmeans=True)
    ax.set_title(domain.title())
    ax.tick_params(axis="x", rotation=20)
    ax.grid(axis="y", alpha=0.25)
axes[0].set_ylabel("Per-sample top-5% Dice")
fig.suptitle("Text-to-brain overlap distributions")
fig.tight_layout()
plt.show()

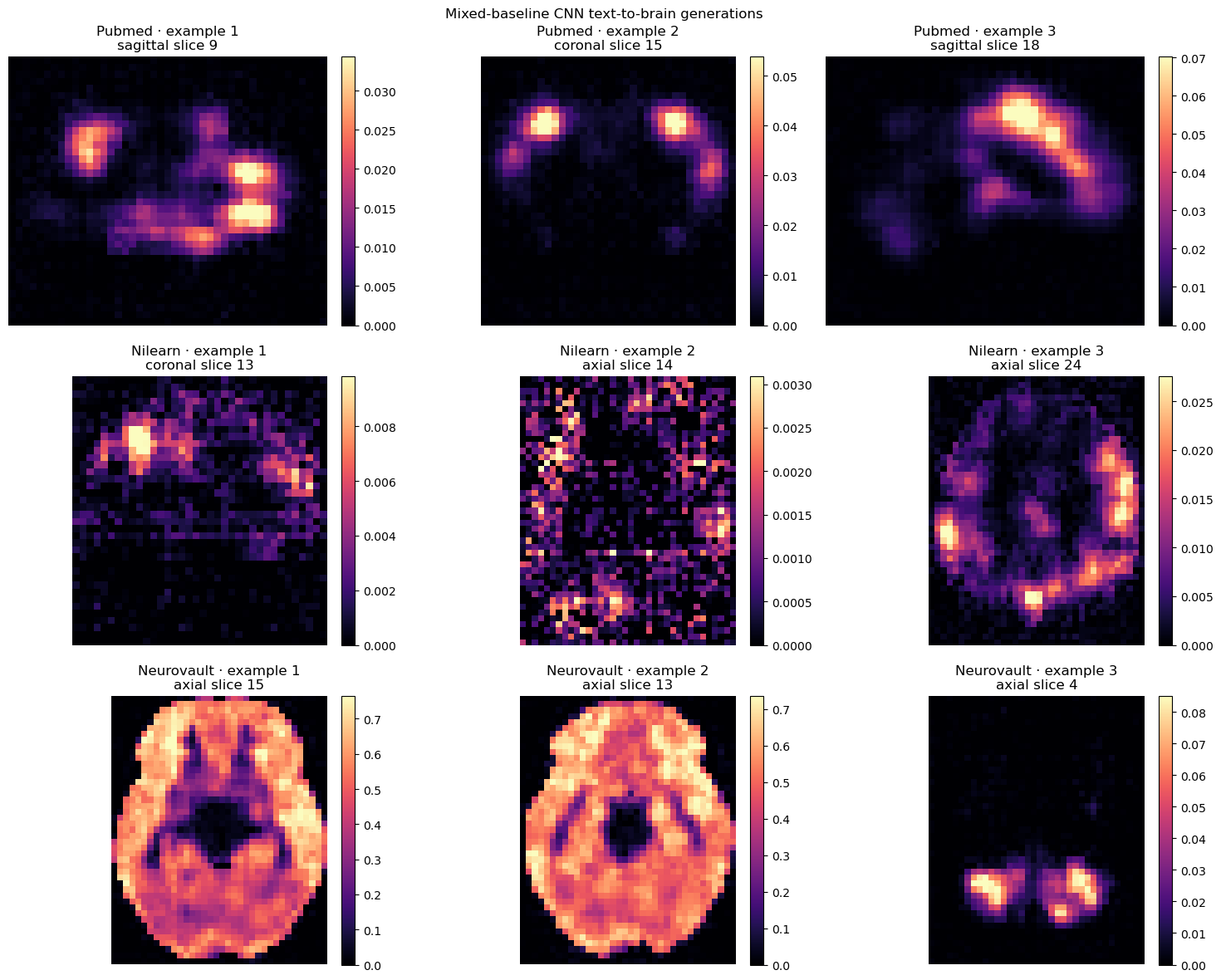

Qualitative CNN generations

Generate three examples for each domain—nine generated brain maps total. All-zero targets are skipped, which avoids invisible Nilearn parcels lost during 4 mm resampling/cropping. The prompt table records the exact text paired with every original map. A dedicated cell shows those original maps; the generated maps then use the same anatomical plane and slice as their paired originals.

EXAMPLES_PER_DOMAIN = 3
PLANE_NAMES = ("sagittal", "coronal", "axial")
text_lookup = AtlasFreeTextEmbeddingLookup.published()
generated_examples = {}
paired_originals = {}
paired_slice_specs = {}
prompt_rows = []

def _first_nonempty_rows(domain, count=EXAMPLES_PER_DOMAIN):
    data = AtlasFreeCNNDataProvider(domain=domain).test
    rows = []
    skipped = 0
    for index in range(len(data)):
        row = data[index]
        if int(torch.count_nonzero(row["volume"])) == 0:
            skipped += 1
            continue
        rows.append(row)
        if len(rows) == count:
            break
    if len(rows) != count:
        raise RuntimeError(f"Only {len(rows)} non-empty {domain} examples were available")
    return rows, skipped

def _strongest_plane(volume):
    candidates = []
    for axis, plane_name in enumerate(PLANE_NAMES):
        reduce_dims = tuple(dim for dim in range(3) if dim != axis)
        scores = volume.abs().sum(dim=reduce_dims)
        slice_index = int(scores.argmax())
        candidates.append((float(scores[slice_index]), axis, slice_index, plane_name))
    _, axis, slice_index, plane_name = max(candidates)
    return volume.select(axis, slice_index), axis, slice_index, plane_name

def _robust_positive_max(values):
    positive = values[values > 0]
    if not len(positive):
        return max(float(values.abs().max()), 1e-8)
    return max(float(torch.quantile(positive.float(), 0.99)), 1e-8)

for domain in DOMAINS:
    visual_rows, skipped = _first_nonempty_rows(domain)
    visual_batch = AtlasFreeContrastiveCollator(
        text_lookup, (36, 45, 38)
    )(visual_rows)
    generator = load_pipeline(
        family="cnn", task="text_to_brain", domain=domain, device=DEVICE
    )
    generated = generator.generate(visual_batch["text_embedding"]).cpu()
    generated_examples[domain] = generated
    paired_originals[domain] = visual_batch["volume"].cpu()
    paired_slice_specs[domain] = [
        _strongest_plane(volume[0])[1:]
        for volume in paired_originals[domain]
    ]
    for index, row in enumerate(visual_rows):
        axis, slice_index, plane_name = paired_slice_specs[domain][index]
        prompt_rows.append({
            "domain": domain,
            "example": index + 1,
            "map_id": visual_batch["map_id"][index],
            "text_id": visual_batch["text_id"][index],
            "paired_text": primary_positive_text(row),
            "display_plane": plane_name,
            "slice_index": slice_index,
            "all_zero_maps_skipped_before_selection": skipped,
        })

prompt_table = pd.DataFrame(prompt_rows)
pd.set_option("display.max_colwidth", 120)
prompt_table

	domain	example	map_id	text_id	paired_text	display_plane	slice_index	all_zero_maps_skipped_before_selection
0	pubmed	1	pubmed_ale_34173239	pubmed_ale_34173239::pair_0	Enhanced insightfulness and neural activation induced by metaphorical solutions to appropriate mental distress probl...	sagittal	9	0
1	pubmed	2	pubmed_ale_23418930	pubmed_ale_23418930::pair_0	Neural correlates of behavioral variation in healthy adults' antisaccade performance. [SEP] During antisaccade perfo...	coronal	15	0
2	pubmed	3	pubmed_ale_22634217	pubmed_ale_22634217::pair_0	Cerebral correlates of skin conductance responses in a cognitive task. [SEP] During cognitive tasks, physiological a...	sagittal	18	0
3	nilearn	1	nilearn_schaefer_2018_392_7networks_rh_default_pcunpcc_1	nilearn_schaefer_2018_392_7networks_rh_default_pcunpcc_1::pair_0	Right Default mode network parcel 1 [SEP] A large-scale functional network commonly associated with internally direc...	coronal	13	1
4	nilearn	2	nilearn_juelich_probabilistic_51_gm_visual_cortex_v3v	nilearn_juelich_probabilistic_51_gm_visual_cortex_v3v::pair_0	GM Visual cortex V3V [SEP] A functional network centered on occipital and extrastriate regions involved in visual pe...	axial	14	1
5	nilearn	3	nilearn_juelich_17_gm_inferior_parietal_lobule_pfop	nilearn_juelich_17_gm_inferior_parietal_lobule_pfop::pair_0	GM Inferior parietal lobule PFop [SEP] GM Inferior parietal lobule PFop is an anatomical brain region or atlas-defin...	axial	24	1
6	neurovault	1	neurovault_13877	neurovault_13877::pair_0	brain parcellation mcinet basc asym 33clusters	axial	15	0
7	neurovault	2	neurovault_13883	neurovault_13883::pair_0	brain parcellation mcinet basc sym 208clusters	axial	13	0
8	neurovault	3	neurovault_13894	neurovault_13894::pair_0	ttest ctrlvsmci seed #28 (superior medial frontal)	axial	4	0

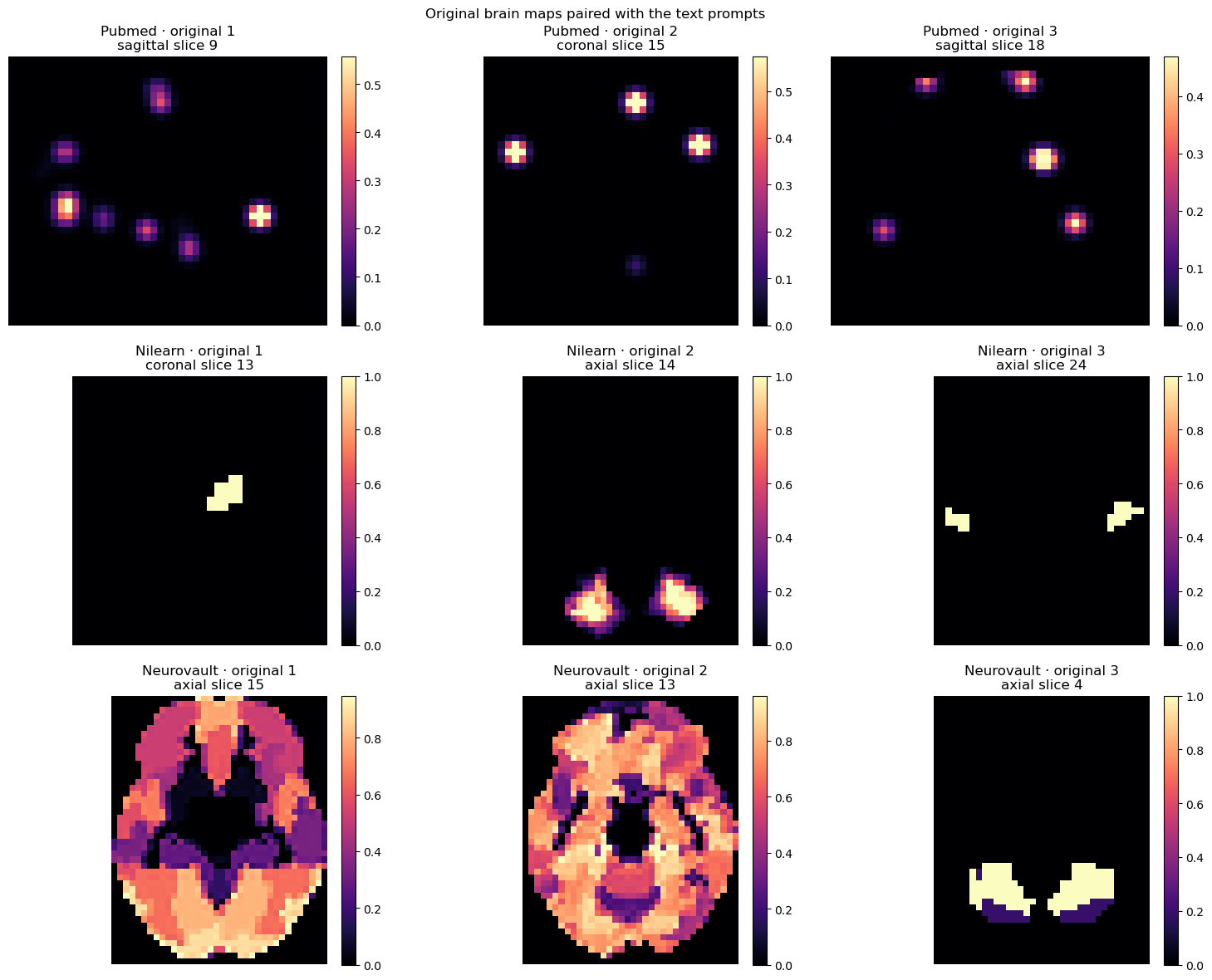

Original brain maps paired with the text prompts

The grid order matches the prompt table: three original target maps for PubMed, three for Nilearn, and three for NeuroVault.

fig, axes = plt.subplots(
    len(DOMAINS), EXAMPLES_PER_DOMAIN, figsize=(15, 12)
)
for domain_index, domain in enumerate(DOMAINS):
    for example_index in range(EXAMPLES_PER_DOMAIN):
        volume = paired_originals[domain][example_index, 0]
        axis, slice_index, plane_name = paired_slice_specs[domain][example_index]
        plane = volume.select(axis, slice_index)
        ax = axes[domain_index, example_index]
        image = ax.imshow(
            plane.T,
            cmap="magma",
            origin="lower",
            vmin=0.0,
            vmax=_robust_positive_max(plane),
        )
        ax.set_title(
            f"{domain.title()} · original {example_index + 1}\n"
            f"{plane_name} slice {slice_index}"
        )
        ax.axis("off")
        fig.colorbar(image, ax=ax, fraction=0.046, pad=0.04)
fig.suptitle("Original brain maps paired with the text prompts")
fig.tight_layout()
plt.show()

fig, axes = plt.subplots(
    len(DOMAINS), EXAMPLES_PER_DOMAIN, figsize=(15, 12)
)
for domain_index, domain in enumerate(DOMAINS):
    for example_index in range(EXAMPLES_PER_DOMAIN):
        volume = generated_examples[domain][example_index, 0]
        axis, slice_index, plane_name = paired_slice_specs[domain][example_index]
        plane = volume.select(axis, slice_index)
        ax = axes[domain_index, example_index]
        image = ax.imshow(
            plane.T,
            cmap="magma",
            origin="lower",
            vmin=0.0,
            vmax=_robust_positive_max(plane),
        )
        ax.set_title(
            f"{domain.title()} · example {example_index + 1}\n"
            f"{plane_name} slice {slice_index}"
        )
        ax.axis("off")
        fig.colorbar(image, ax=ax, fraction=0.046, pad=0.04)
fig.suptitle("Mixed-baseline CNN text-to-brain generations")
fig.tight_layout()
plt.show()

Use ComparisonSelection(from_run=...) when evaluating a local run rather than a released Hugging Face checkpoint. Mixed-baseline CNN heads remain the default; fine-tuned heads are included only when INCLUDE_FINETUNED is set explicitly.
