Quickstart

Quickstart#

This tutorial introduces the high-level, inference-only API. It walks through text-to-brain and brain-to-text generation and retrieval.

Generative models#

Text-to-Brain: Generative#

The default text-to-brain model is from the PubMed training set, thus inherits biases of that set. For example, anatomy is not always well followed and probabilities are not calibrated. However, this is a base model that can be fined-tuned and calibrated. A calibrator class if provided in:

from neurovlm.models.adapter import LogitCalibrator

A anatomy-focused fine-tune adapter of the base model is provided, along with a learned calibrator. To use this model, set .to_brain(head='mse', adapter=True). Custom adapters should be trained per use-case.

# Initialize with CPU device explicitly
# On Mac, avoid device conflicts by using CPU
nvlm = NeuroVLM(device="cpu")
result = nvlm.text(["vision", "default mode network"]).to_brain(head="mse")
result.to_nifti() # returns list of nib.Nifti1Image

There are adapters available but none are activated for the forward pass.

[<nibabel.nifti1.Nifti1Image at 0x708eca3b5130>,
 <nibabel.nifti1.Nifti1Image at 0x708eca3b4f50>]

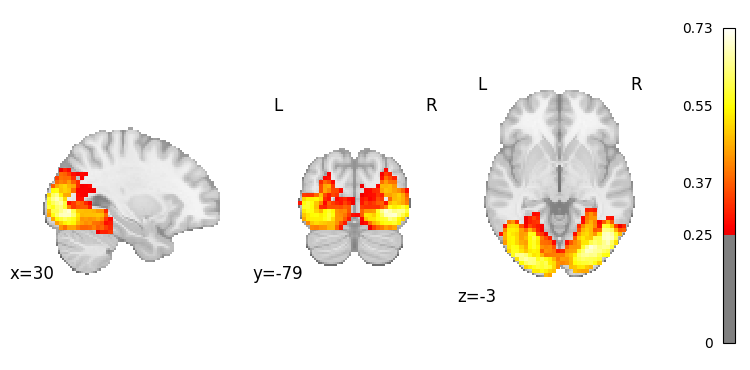

result.plot(0, threshold=0.25); # plot image for vision

../_images/84e915731c2e1810d435e776735ff620e78e3eb5b51f85a24c271c2d135defb8.png

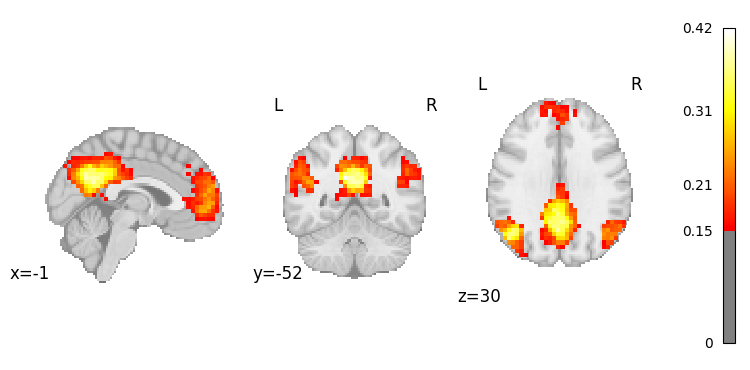

result.plot(1, threshold=0.15); # plot image for DMN

../_images/8cb861be6c93be6dd914c57375e5d359e911d7da838f89627cf676107a7172ff.png

Use the anatomy adapter + calibrator head

result = nvlm.text(["insula", "putamen"]).to_brain(head="mse", adapter=True)

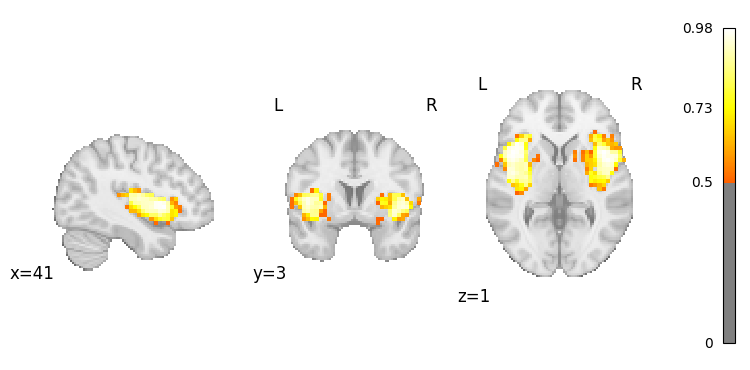

result.plot(0, threshold=0.5); # plot image for insula

../_images/0d2df4d8e0b826987d6fe637bb3acdbca408e86df03c914cd0cf5493de82878b.png

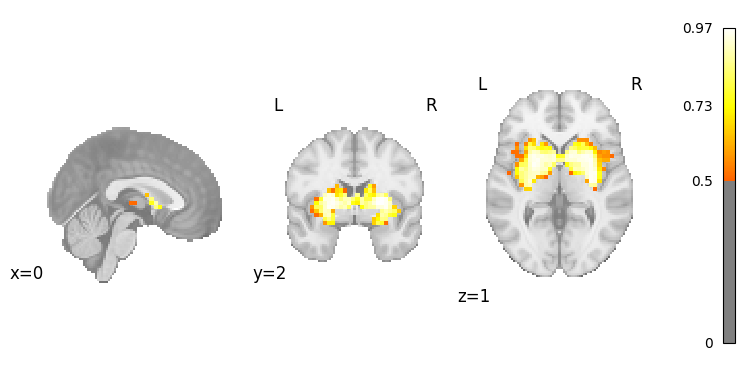

result.plot(1, threshold=0.5); # plot image for putamen

../_images/6bffffd896995a194b6e874366fafdff96add5512e40c95c4a56d21c1e05460b.png

Brain-to-text: Generative#

nvlm = NeuroVLM(device="cuda")
networks = load_latent("networks_neuro")
result = nvlm.brain([networks["Du"]["AUD"], networks["Du"]["DN-A"]]).to_text()

# Text generated from the AUD map
print(result[0])

[NETWORK]Auditory Network
The auditory network is broadly distributed across the superior temporal gyrus, central sulcus, inferior frontal gyrus, and adjacent regions. It is broadly associated with the processing of sound features such as pitch, duration, and timbre. The network is often described as a central hub for auditory perception. It is thought to support the organization of sound into meaningful auditory experiences.

# Text generated from the DN-A map
print(result[1])

[NETWORK]Default Mode Network
The default mode network includes medial prefrontal cortex, posterior cingulate cortex, angular gyrus, inferior parietal lobule, precuneus, and temporoparietal junction. It is commonly associated with self-referential thought, memory retrieval, and social cognition.

Contrastive models#

Text-to-Brain: Contrastive Ranking & Retrieval#

Contrastive models are used for ranking and retrieval. We can lookup similar neuroimages in a dataset, given a text query. This works by embedding the text query and comparing a set of image embeddings via cosine similarity.

# Initialize with CPU device explicitly
nvlm = NeuroVLM(device="cpu")
result = nvlm.text("motor").to_brain(head='infonce')
top = result.top_k(2) # each row pairs to a neuorimage that is most similar to the text query
top

There are adapters available but none are activated for the forward pass.

	dataset	dataset_index	title	description	cosine_similarity
0	networks	82	Shirer	Sensorimotor	0.438795
1	networks	130	WashU	Effector-hand	0.432333
2	neurovault	1939	Brain responses to anticipatory cues and milks...	There is substantial variability in percent to...	0.463300
3	neurovault	1068	Large-Scale Network Coupling with the Fusiform...	Large-scale functional networks, as identified...	0.449919
4	pubmed	6401	Group-level variations in motor representation...	Navigated transcranial magnetic stimulation (T...	0.466430
5	pubmed	904	Ipsilateral motor cortex activation on functio...	Distal, unilateral hand movements can be assoc...	0.459416

Each row in the top dataframe above, is paried to an image that can be viewed.

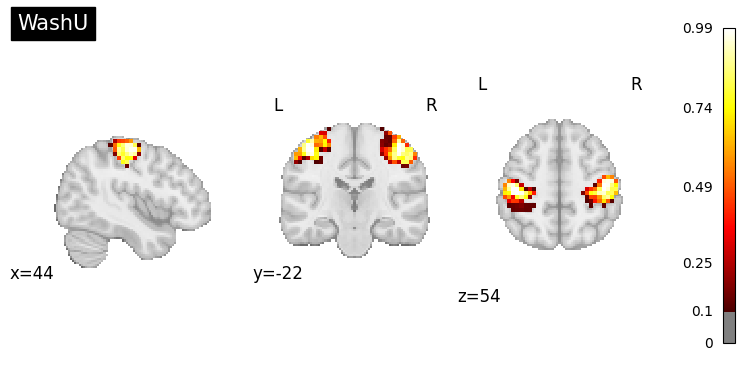

# WashU network atlas
top.plot_row(1, threshold=0.1);

../_images/5307ceae15c878a5ed7263ec3a026631675879f30e133ded2f6e9393f41be4cb.png

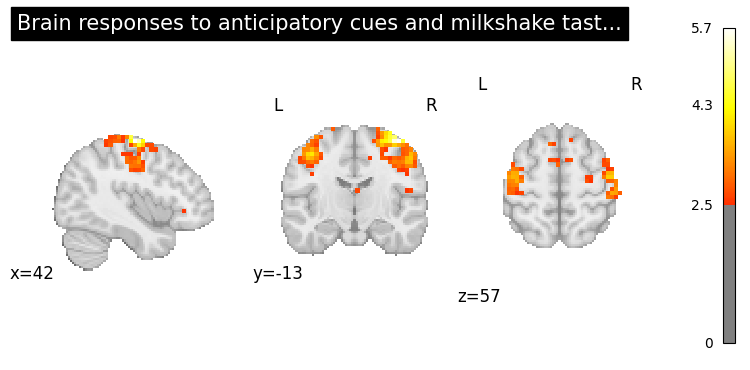

# NeuroVault
top.plot_row(2, threshold=2.5);

../_images/3d9ec03272df0e517f75ce6c68ace21ce12ef6e9fd39e11ea3843f49a14b8c5e.png

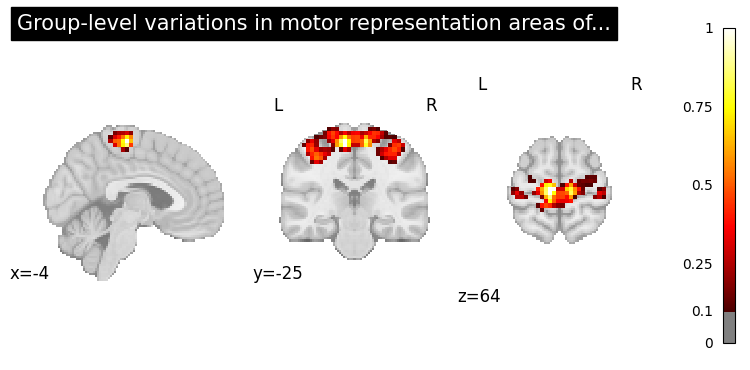

# PubMed
top.plot_row(4, threshold=0.1);

../_images/5b530233c20fb6595d5830ba761c31dd1f4bcb1d1005b3814e152b77f1f5e0cd.png

Brain-to-Text: Contrastive Ranking & Retrieval#

Here we use an auditory map as input from the Du atlas. We use the contrastive model to rank the most similar text across the datasets.

# Transform rank text based on auditory network
nvlm = NeuroVLM(device="cpu")
result = nvlm.brain(networks["Du"]["AUD"]).to_text(head='infonce')

result.top_k(5, dataset="pubmed")

	dataset	title	description	cosine_similarity
0	pubmed	The processing of temporal pitch and melody in...	An fMRI experiment was performed to identify t...	0.526884
1	pubmed	Heschl's gyrus, posterior superior temporal gy...	A part of the auditory system automatically de...	0.504547
2	pubmed	Hierarchical processing of sound location and ...	Horizontal sound localization relies on the ex...	0.499913
3	pubmed	Brain bases for auditory stimulus-driven figur...	Auditory figure-ground segregation, listeners'...	0.490401
4	pubmed	Dichotic pitch activates pitch processing cent...	Although several neuroimaging studies have rep...	0.485120

result.top_k(5, dataset="pubmed_mesh")

	dataset	title	description	cosine_similarity
0	pubmed_mesh	auditory cortex	The Auditory Cortex is a region of the brain l...	0.424034
1	pubmed_mesh	human auditory cortex	The human auditory cortex is a specialized reg...	0.420337
2	pubmed_mesh	recruitment detection, audiologic	Recruitment Detection, Audiologic refers to a ...	0.419473
3	pubmed_mesh	superior temporal regions	The superior temporal regions are part of the ...	0.417734
4	pubmed_mesh	secondary auditory cortex	The secondary auditory cortex is a region of t...	0.416860

result.top_k(5, dataset='llm_neuro_terms')

	dataset	title	description	cosine_similarity
0	llm_neuro_terms	acoustic processing hierarchy	a hierarchical organization of brain regions i...	0.461465
1	llm_neuro_terms	auditory attention	the process of focusing on auditory information.	0.461102
2	llm_neuro_terms	auditory area	brain regions responsible for processing sound...	0.459281
3	llm_neuro_terms	pitch processing	Pitch processing is a neuroscience term used a...	0.446591
4	llm_neuro_terms	auditory processing	the process of interpreting auditory stimuli.	0.445352

result.top_k(5, dataset='cogatlas')

	dataset	title	description	cosine_similarity
0	cogatlas	auditory stream segregation	The perceptual grouping of sounds to form cohe...	0.437669
1	cogatlas	auditory encoding	The process of storing auditory information in...	0.431347
2	cogatlas	music cognition	The processing of mental functions on auditory...	0.431245
3	cogatlas	acoustic phonetic processing	The cognitive ability to discriminate items on...	0.423635
4	cogatlas	auditory tone detection	Determining the presence of an auditory stimul...	0.417665

result.top_k(5, dataset='wiki')

	dataset	title	description	cosine_similarity
0	wiki	Temporal masking	Temporal masking or non-simultaneous masking o...	0.489581
1	wiki	Melodic expectation	In music cognition and musical analysis, the s...	0.454363
2	wiki	Search by sound	Search by sound is the retrieval of informatio...	0.452222
3	wiki	Beat (acoustics)	In acoustics, a beat is an interference patter...	0.447247
4	wiki	Harmonic series (music)	The harmonic series (also overtone series) is ...	0.446160
